Trims

Standard Trim

Available in all standard colors.
Korogard Standard Trim Specs

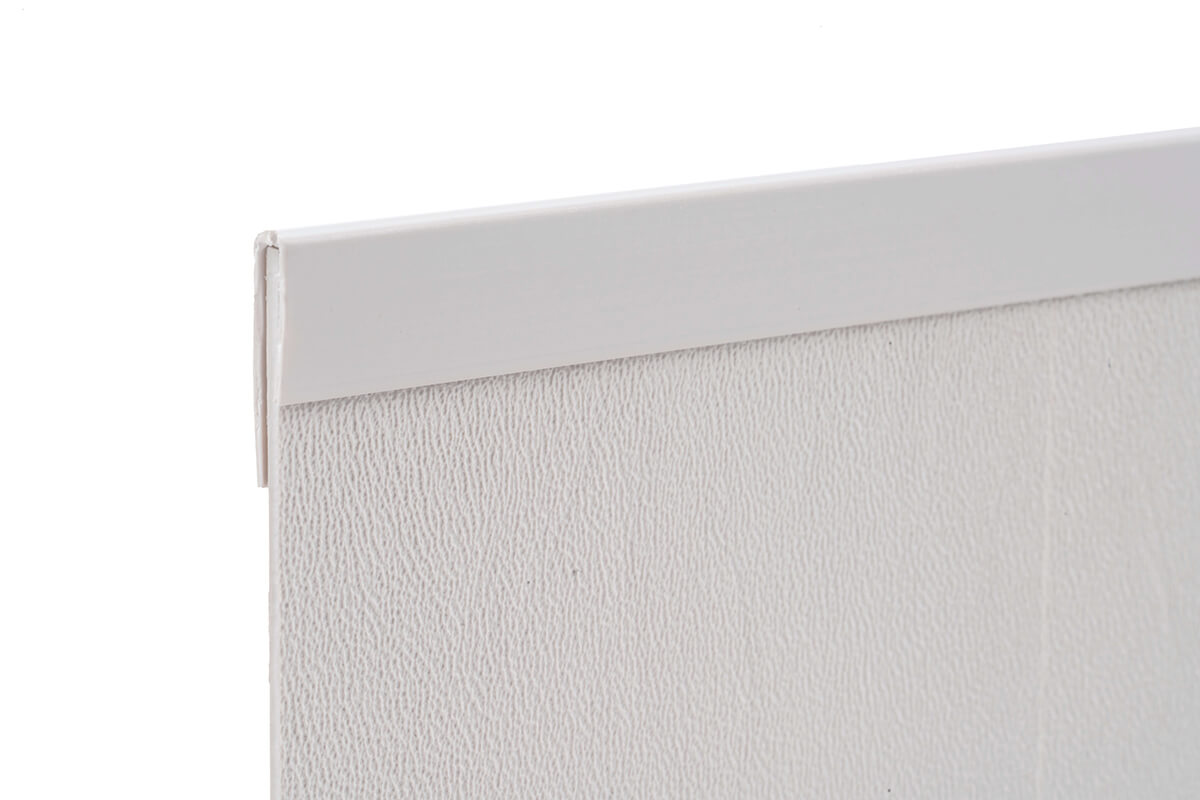

J-Cap (M082)

J-Cap is available for .028 –.060” thicknesses and 10’ lengths. The visible trim width is .450”.

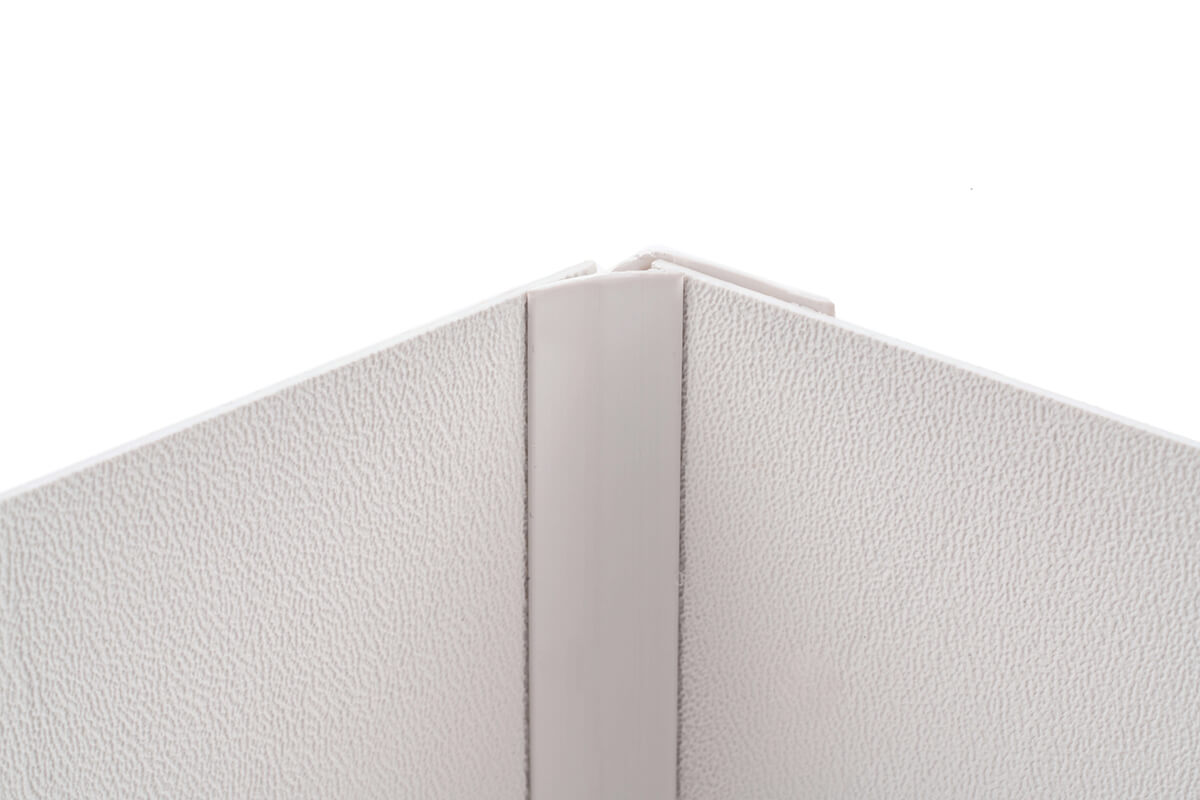

Inside Corner (M083)

Inside corner is available for .028 –.060” thicknesses and 10’ lengths. The visible trim width is .450”.

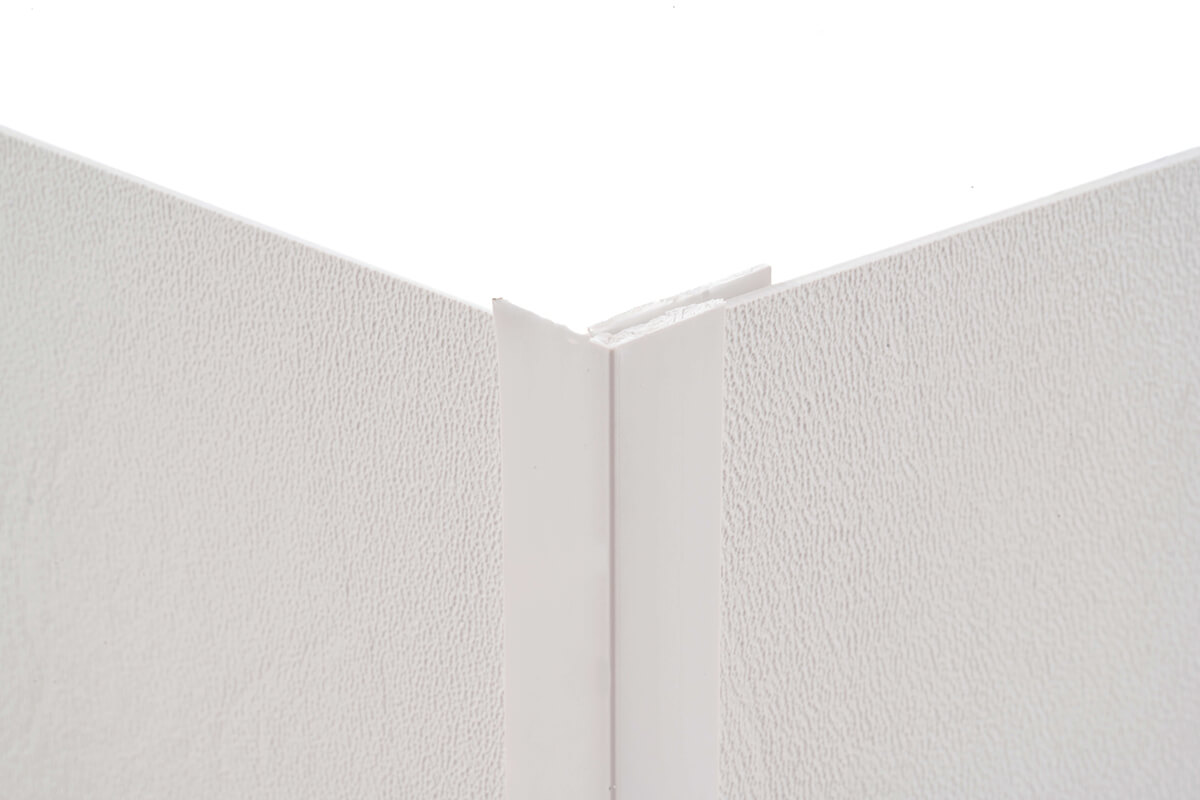

Outside Corner (M085)

Outside corner is available for .028 –.060” thicknesses and 10’ lengths. The visible trim width is .450”.

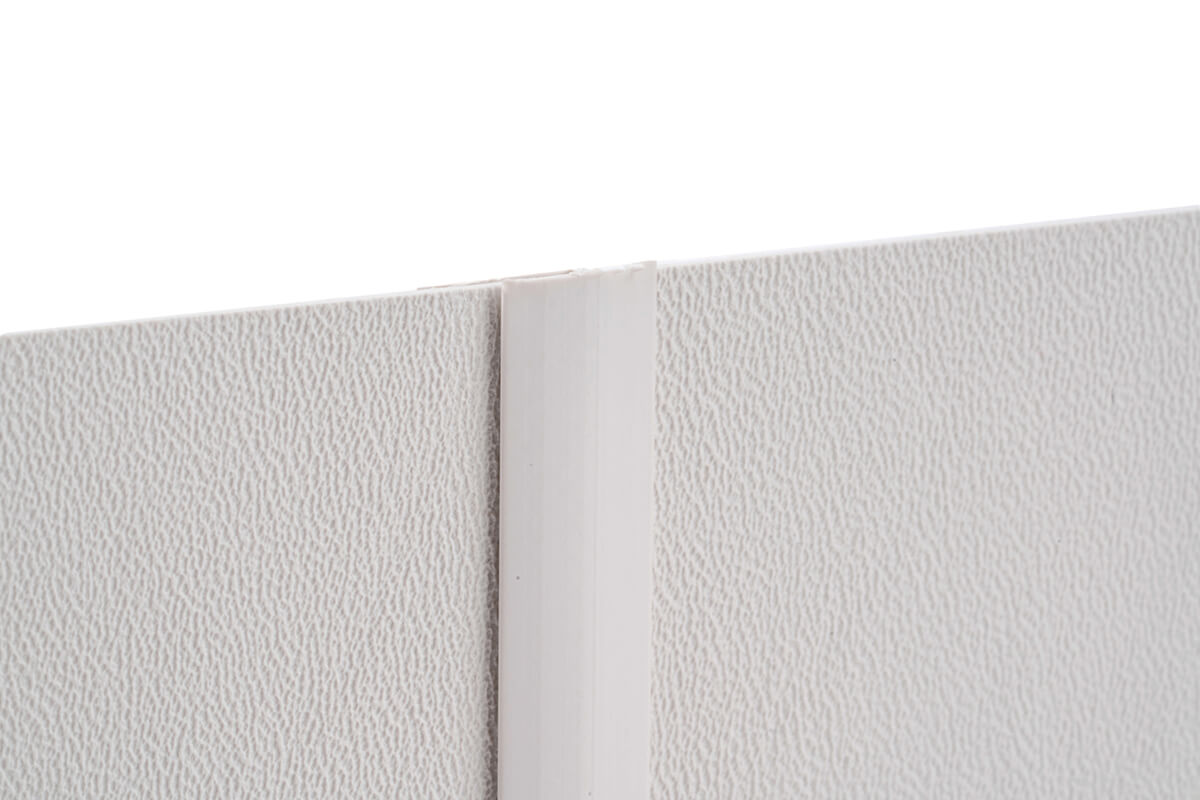

Divider Bar (M087/M088)

Divider bar is available for .028 –.040” and .050–.060” thicknesses and 10’ lengths. The visible trim width for each is .450”.

Aluminum Trim

Korogard Aluminum Trim Specs

J-Cap (JC12)

J-Cap is available for .028 –.060” thicknesses and 12’ lengths. The visible trim width is .250”.

Inside Corner (IC12)

Inside corner is available for .028 –.060” thicknesses and 12’ lengths. The visible trim width is .337”.

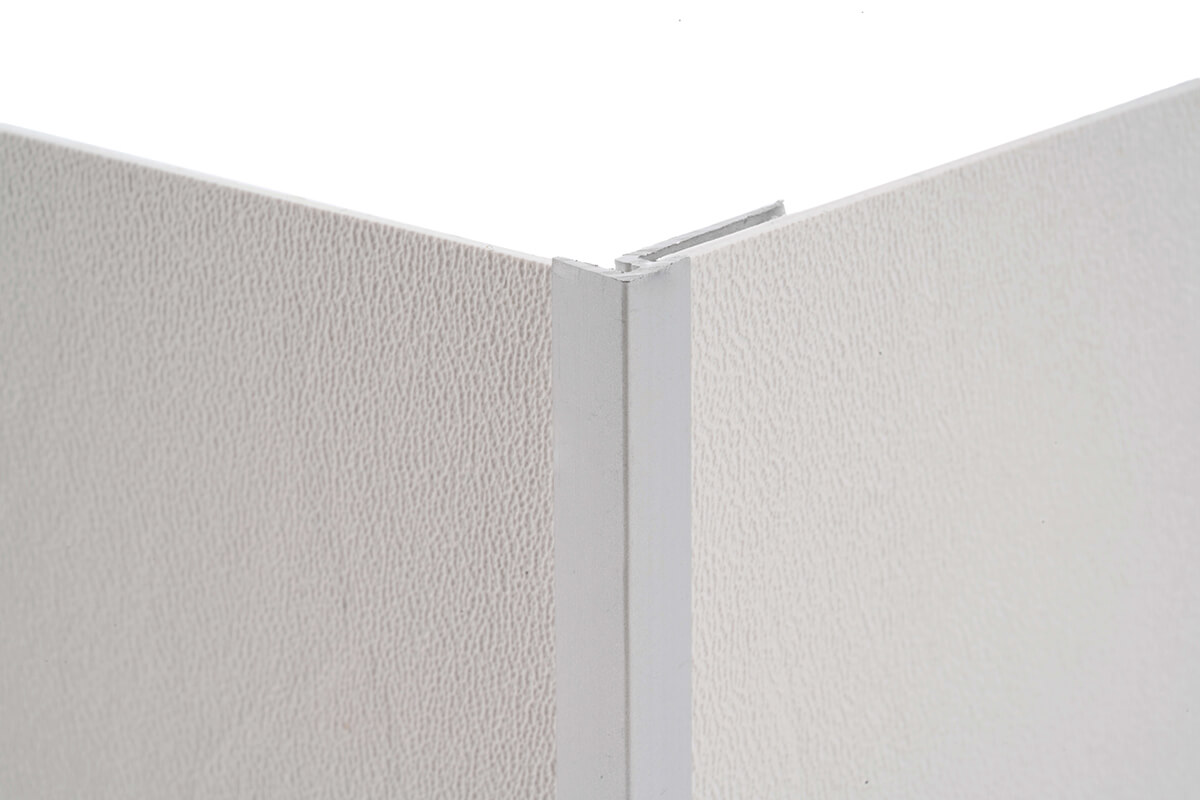

Outside Corner (OC12)

Outside corner is available for .028 –.060” thicknesses and 12’ lengths. The visible trim width is .281”.

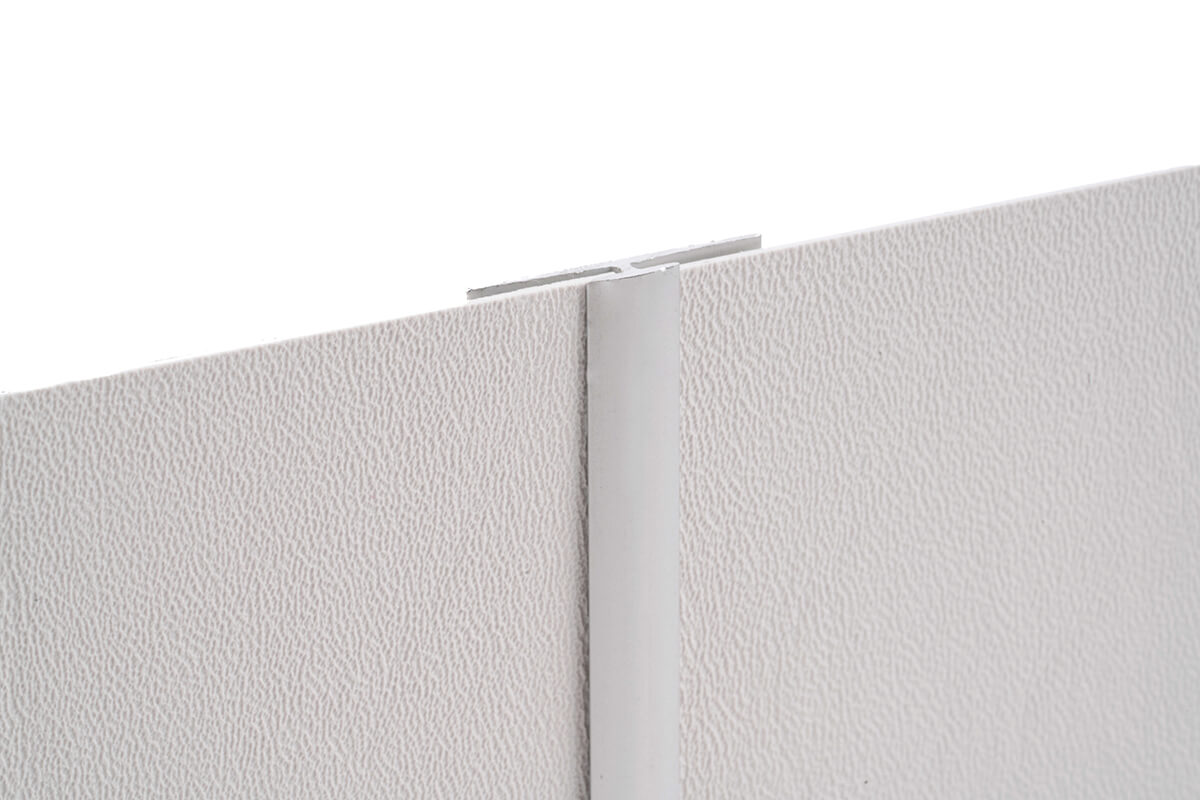

Divider Bar (DB12)

Divider bar is available for .028 –.060” thicknesses and 12’ lengths. The visible trim width is .320”.

Primer, Adhesives, & Caulk

• XT-2000+™ Primer is a water-based primer for sealing and priming wallboard and concrete block prior to applying XT-2000+ Adhesive.
• XT-2000+™ Mastic Adhesive is a water-based, high strength adhesive with aggressive initial tack and permanent flexible bond.
• Spray-Lock® FRP Spray Adhesive is a water-based, acrylic spray adhesive.
• 3M™ Fastbond™ Contact Adhesive 30NF is a low-odor, water-based adhesive designed to have high strength, high coverage, long bonding range, and good heat resistance.
• Color Rite™ Caulk is an acrylic-based sealant matched to Korogard standard colors. May be used as an alternative to trim for inside corners and as an expansion gap between sheets.
